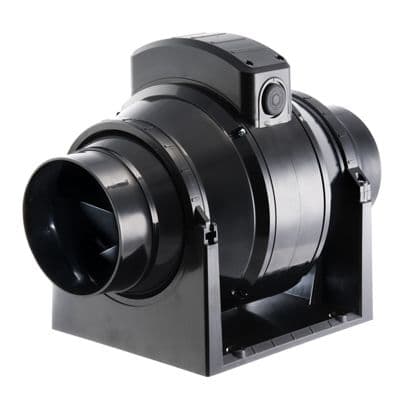

An in-line extractor fan is a type of ventilation fan that you install within ductwork instead of mounting on walls or ceilings. These fans actively extract stale air, odors, and moisture from spaces, improving air quality and comfort. People frequently use them in residential, commercial, and industrial settings where efficient ventilation is essential. Below is a detailed overview of in-line extractor fans, their applications, types, installation process, and maintenance tips.

Applications of In-line extractor fan

• Bathrooms: Removes moisture and prevents mold and mildew growth.
• Kitchens: Extracts cooking odors, smoke, and grease-laden air.
• Attics: Ventilates hot, stale air and reduces the load on air conditioning systems.
• Basements: Reduces humidity and improves air quality.
• Industrial and Commercial Spaces: Ventilates work areas by removing fumes, dust, and other contaminants.

Types of In-line extractor fan

1. Centrifugal Fans:

   • Mechanism: A rotating impeller draws air into the fan and expels it at a 90-degree angle.
   • Advantages: Delivers high pressure and airflow, making it ideal for long duct runs.
   • Disadvantages: Produces more noise than other fan types.

2. Axial Fans:

   • Mechanism: A propeller draws air straight through the fan, parallel to the axis of rotation.
   • Advantages: Offers high airflow at low pressure, making it efficient for short duct runs.
   • Disadvantages: Performs poorly in long ducts or high-pressure situations.

3. Mixed Flow Fans:

   • Mechanism: Combines axial and centrifugal fan elements for balanced pressure and airflow.
   • Advantages: Versatile and efficient for various duct lengths and applications.
   • Disadvantages: Costs more and is more complex compared to axial fans.

Features to Consider when choosing In-line extractor fan

• Airflow Rate: Measured in cubic feet per minute (CFM) or liters per second (L/s), it indicates the volume of air the fan moves. Choose a fan with the right airflow rate for your needs.
• Noise Level: Measured in decibels (dB), it determines how loud the fan operates. Opt for a low-noise model for residential or quiet commercial spaces.
• Energy Efficiency: Select fans with high energy-efficiency ratings to lower energy use and costs.
• Speed Control: Some fans include variable speed controls to adjust airflow as needed.
• Installation Flexibility: Ensure compatibility with the duct size and layout of your system.

Installation

1. Location: Place the fan centrally within the ductwork to maximize efficiency. You can mount it in an attic, crawl space, or a concealed area.
2. Mounting: Secure the fan to a solid surface using brackets or supports, ensuring it stays firmly in place to minimize vibration and noise.
3. Electrical Connection: Wire the fan to the power supply according to the manufacturer’s instructions. Use a dedicated circuit and proper grounding if needed.
4. Duct Connections: Attach the inlet and outlet ducts to the fan using clamps or duct tape, ensuring a tight seal. Insulate the ducts if needed to prevent condensation and energy loss.
5. Testing: Test the fan after installation to confirm proper operation and airflow through the ductwork.

Maintenance

1. Regular Inspections: Periodically check the fan and ductwork for dust buildup, blockages, or damage.
2. Cleaning: Use a vacuum or damp cloth to clean the fan blades and housing, removing any dust and debris.
3. Lubrication: Apply lubricant to moving parts as recommended by the manufacturer.
4. Electrical Checks: Inspect the wiring and connections to ensure they are secure and undamaged.
5. Filter Replacement: Replace filters as scheduled by the manufacturer to maintain airflow and efficiency.

By choosing the right in-line extractor fan and maintaining it properly, you ensure efficient ventilation, improved air quality, and a longer lifespan for your system.
