Finstar Industrial Systems offers its advanced range of AC manifold gauge set. They are used to measure the pressure of refrigerants in the system, diagnose issues, and perform maintenance tasks such as recharging the refrigerant.

An AC manifold gauge is a crucial tool for HVAC (Heating, Ventilation, and Air Conditioning) technicians. It’s used to diagnose, service, and maintain air conditioning systems by measuring the pressures of refrigerant within the system. Here’s a comprehensive overview:

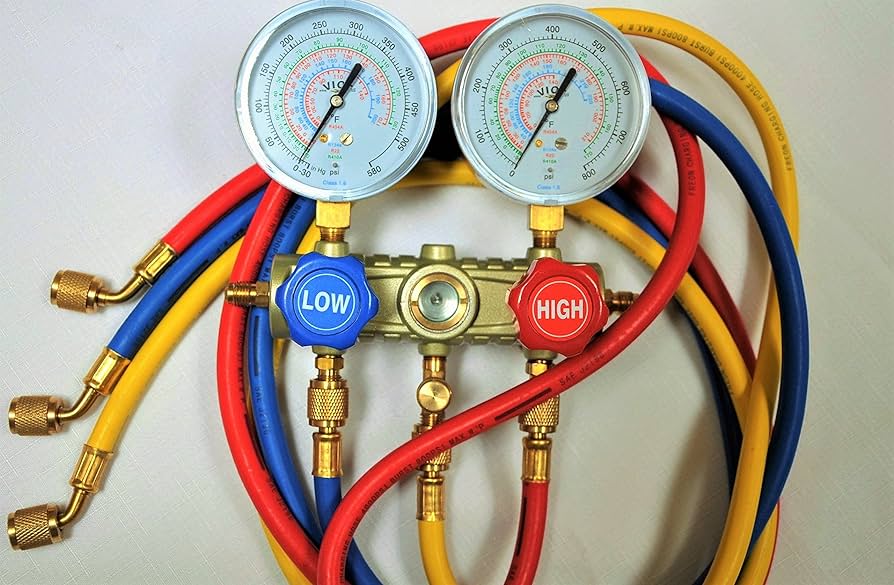

Components of an AC Manifold Gauge Set

1. Manifold Block: The central component with ports to connect the gauges and hoses. It usually has two or three ports.
   • Low-Pressure Side (Blue): Connects to the suction side of the system.
   • High-Pressure Side (Red): Connects to the discharge side.
   • Center Port (Yellow): Typically used for vacuuming, charging, and recovery.
2. Gauges:
   • Low-Pressure Gauge (Blue): Measures the pressure in the low-pressure side and can also indicate vacuum in the system.
   • High-Pressure Gauge (Red): Measures the pressure in the high-pressure side.
3. Hoses: Flexible connections with fittings that attach the manifold to the air conditioning system. Color-coded (blue, red, yellow) to correspond with the gauges and center port.
4. Valves: Controls the flow of refrigerant through the manifold. Opening or closing these valves directs the refrigerant flow for various operations.

Functions of AC Manifold Gauge Set

1. Measuring System Pressure: Helps in diagnosing the operational status of the AC system by comparing pressure readings to manufacturer specifications.
2. Charging Refrigerant: Adding the correct amount of refrigerant to the system to ensure optimal performance.
3. Recovering Refrigerant: Safely removing refrigerant from the system, often for maintenance or repair purposes.
4. Evacuating/Vacuuming: Removing air and moisture from the system before charging it with refrigerant, which is essential for preventing system contamination and ensuring efficiency.

Using an AC Manifold Gauge Set

1. Preparation:
   • Ensure the gauges are calibrated.
   • Connect the hoses to the appropriate ports on the manifold block.
   • Attach the hoses to the AC system’s service ports (blue to low-pressure, red to high-pressure, yellow to refrigerant tank or vacuum pump).
2. Reading Pressures:
   • Open the valves to allow refrigerant to flow into the gauges.
   • Observe the readings on both low-pressure and high-pressure gauges to diagnose the system.
3. Charging the System:
   • Connect the yellow hose to the refrigerant source.
   • Open the low-pressure side valve to allow refrigerant to flow into the system while monitoring the gauges.
4. Recovering Refrigerant:
   • Connect the yellow hose to a recovery machine.
   • Open the appropriate valves to allow refrigerant to be withdrawn from the system.
5. Evacuating the System:
   • Connect the yellow hose to a vacuum pump.
   • Open both low and high-pressure side valves to evacuate air and moisture from the system.

Safety Precautions

• Wear Protective Gear: Always wear safety goggles and gloves to protect against refrigerant exposure.
• Avoid Cross-Contamination: Ensure hoses and gauges are free from contaminants before use.
• Follow Manufacturer Instructions: Adhere to specific guidelines for the AC system and the manifold gauge set.

Maintenance and Care

• Regular Calibration: Ensure gauges are accurate.
• Clean and Inspect: Regularly clean the manifold and hoses, and inspect for any signs of wear or damage.
• Proper Storage: Store the gauge set in a cool, dry place to prevent damage.

Using an AC manifold gauge set properly ensures the efficiency and longevity of air conditioning systems, making it an indispensable tool for HVAC professionals.
